RL-WF series laser welding machine, configured with domestic or imported 500-3000W continuous light fiber laser, with multi-axis linkage laser welding table, adopts precision welding control system and automated seam tracking system, which can realize precision welding of various products with controllable welding depth and more beautiful weld surface. Has been widely used in new power battery, consumer electronics, solar panels, automotive parts, hardware kitchenware, medical equipment, sensors, molds, jewelry, glasses, stainless steel doors and windows and other industries.
● Adopting single mode fiber continuous laser, QBH double pendulum welding head, it has a wide range of application.
● Suitable for all kinds of mold steel, aluminum, copper, stainless steel, cymbal steel, precious metals and very hard materials.
● Mainly used in a variety of metal parts, sheet metal shell, machined parts, etc.. Main application industries: automobile spare parts stamping parts assembly, sports equipment, sheet metal frame, etc.
| Equipment Model | RL-LF3000W-R-G |
|---|---|

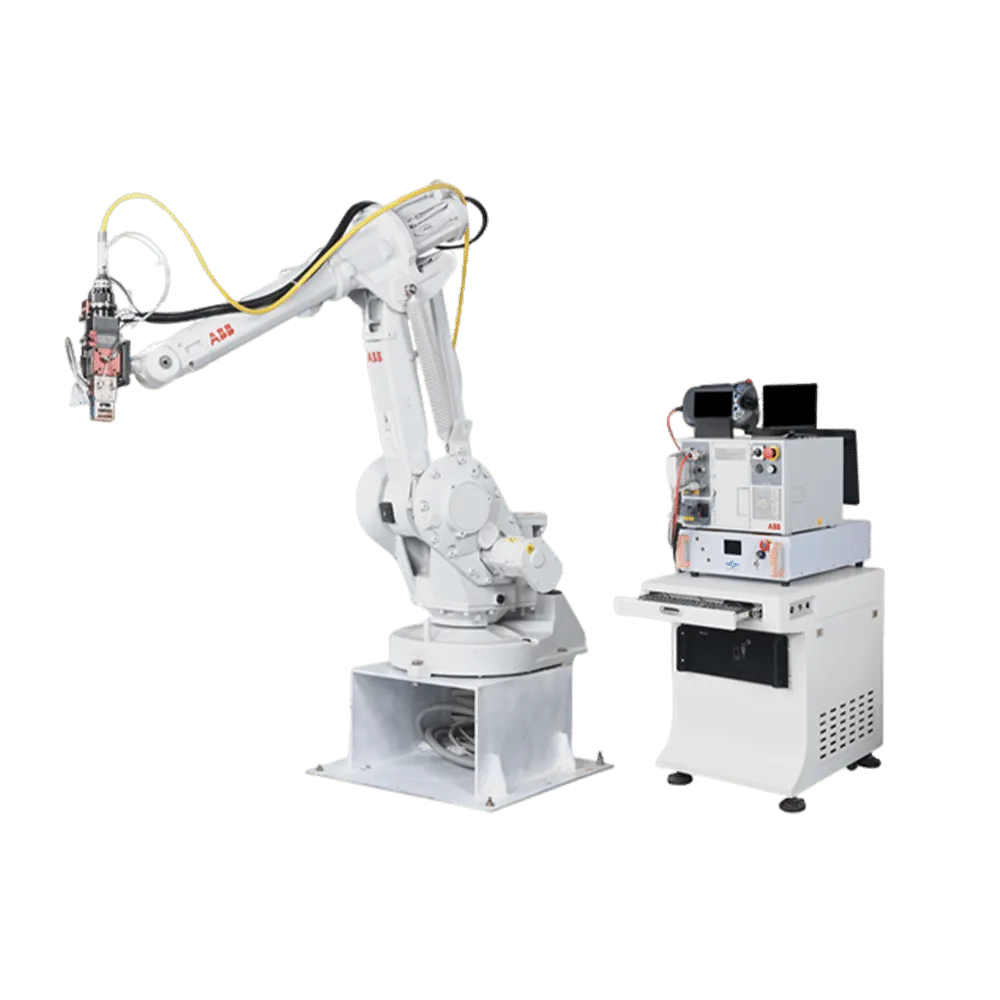

| Robot | 6-axis robot (Fanuc, ABB, etc.) |
| Output power | Max 3000W (continuously adjustable), others optional 1000W, 1500W, 6000W, 10000W |
| Laser wavelength | 1060-1070nm |
| Cooling method | Water cooling |
| Power Stability | ±2% |
| Beam quality M2 | 1.5(100μ-QBH) |
| Modulation frequency | 50KHz |
| Welding depth | ≤5mm(depending on material) |
| XYZ travel | XYZ: 600*300*400mm |
| Repeat positioning accuracy | 0.025mm |
| Motion mode | Multi-axis linkage |
| Control mode | Board/robot communication |
| Positioner | Support |
| Tooling | JIG non-standard customization |
| Environmental Requirements | Temperature: 0℃～50℃ /Humidity: 5%～80 |
| Spot Adjustable Range | 0.1-5mm |
| Welding head type | QBH Double Swing Wobble |
| Overall Dimension | 2050*2000*1700mm |
| Power Requirement | Three-phase 380V 50Hz/60Hz |
| Equipment Power Consumption | 18KW |
| Body Color | White/Gray Beige |
| Weight | 600KG |
| Non-standard design | Support non-standard customized solutions |
