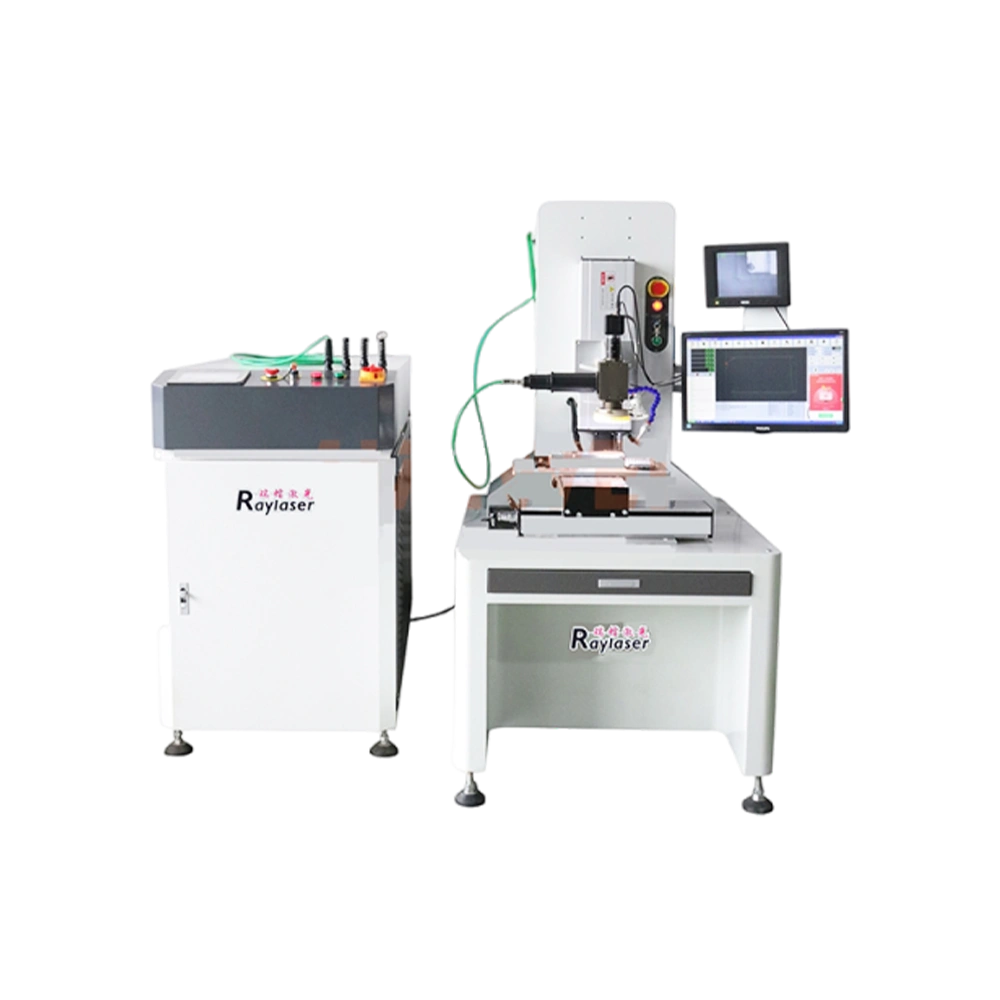

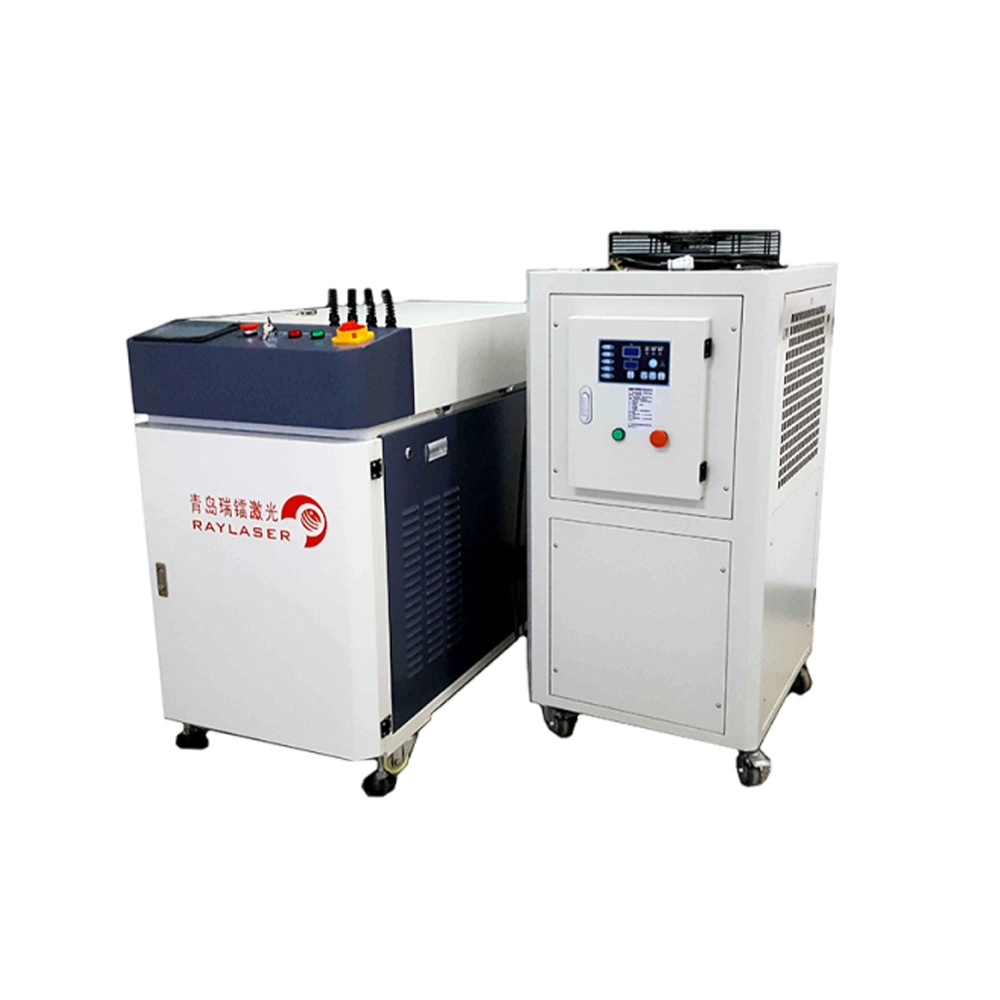

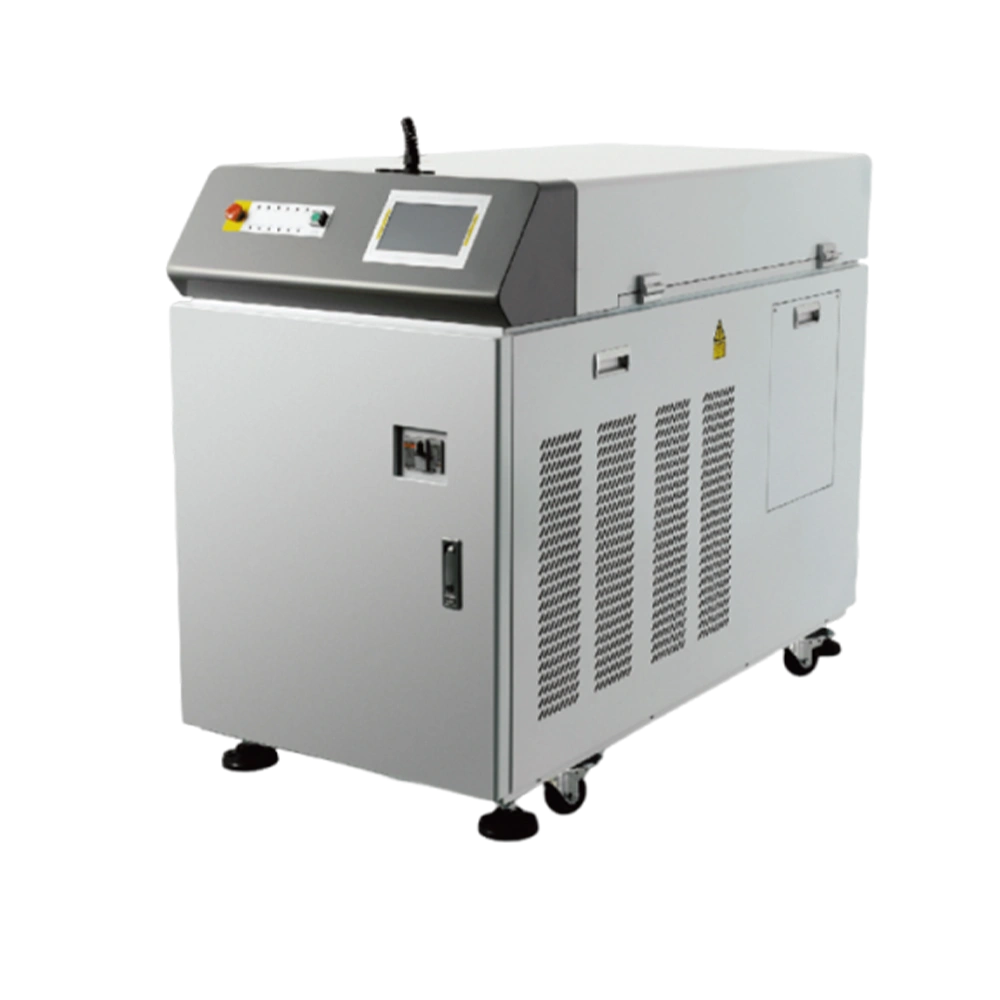

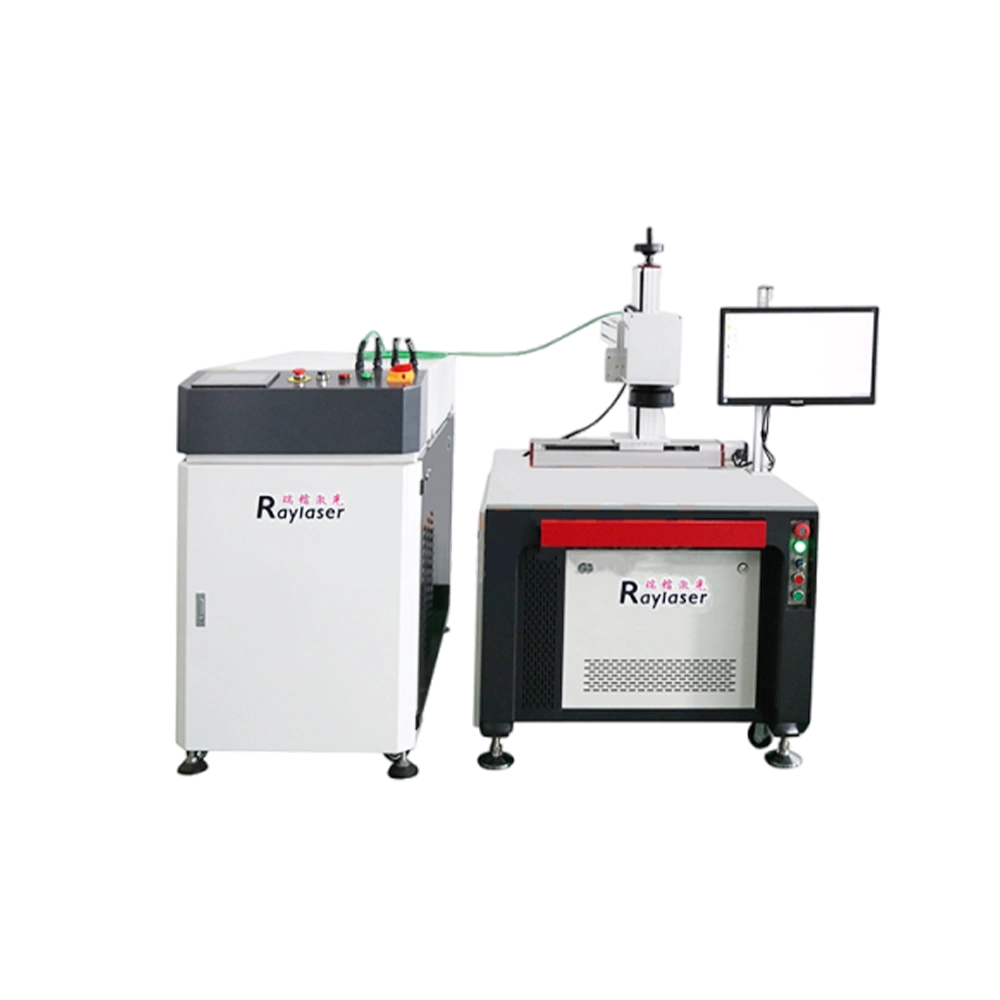

Fibre Conduction Laser Welding Machine

● Self-developed energy feedback, the central controller uses a 32-bit processor to achieve real-time control, FPGA technology ensures accuracy, single pulse energy fluctuation <±2%, arbitrary waveform control, more than 20 inflection points can be set;

● Adopt PWM constant current voltage stabilization charging method (output 650V±2V) to ensure the stability of laser discharge, the impact current is very small, and it also avoids the impact of voltage changes in the external power grid on the laser welding machine;

● Energy feedback, real-time control, switching frequency up to 50KHz all-fiber energy transmission system, Mitsubishi optical fiber imported from Japan, the loss of the entire energy transmission system is within 8%, 25MM thickness optical platform, plus buffer pad, optical dust-proof seal, professional Adjustable stand design;

● The safety performance of the whole machine is designed according to European standards. There are 32 safety detection points, multiple protections, modular design, and the water circuit is completely separated.

Suitable for repair welding of various mold materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082 and other mold steels from various countries. There will be no cracks, sand holes, scars, deformation, or oxidation after welding. It is suitable for mirror polishing, scratches, and etching. Selecting the corresponding welding materials and corresponding repair welding parameters can make the repair welding part reach a hardness of nearly HRC60°.
