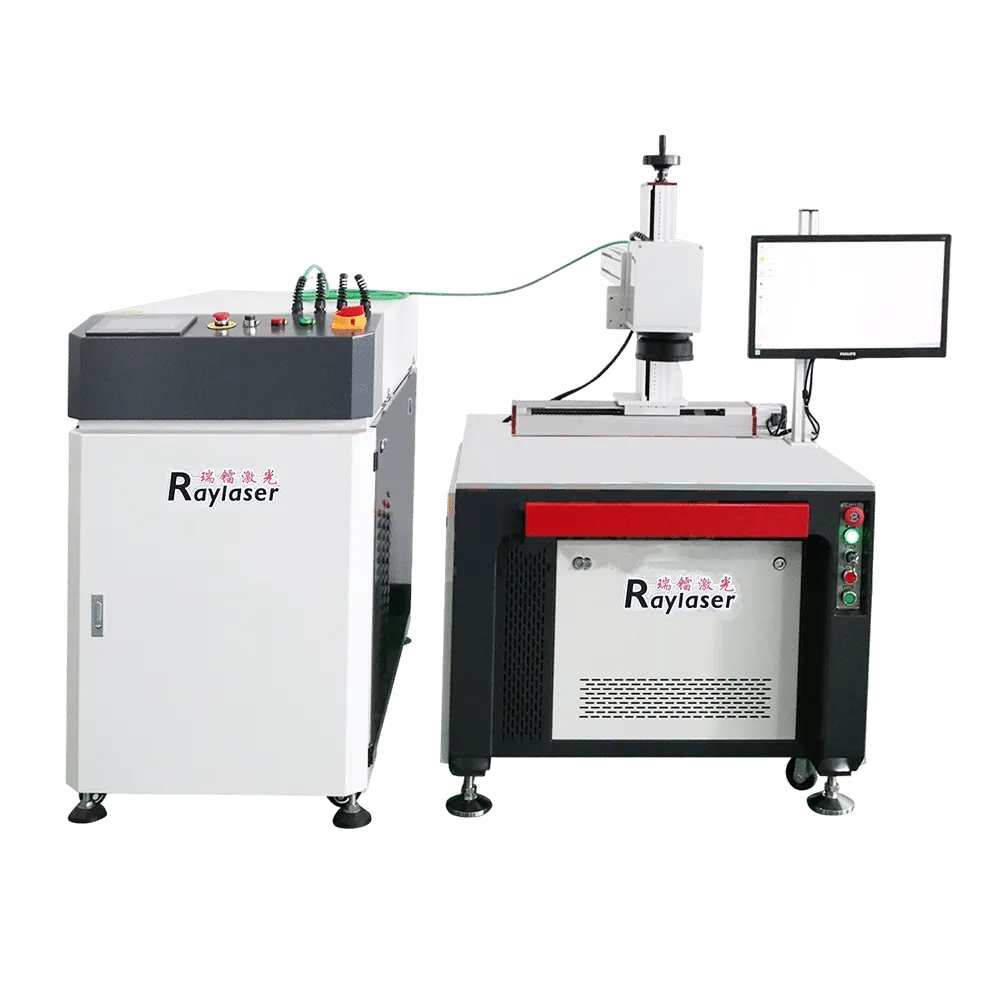

Adopting fiber conduction YAG fiber transmission laser and QBH galvanometer scanning head, it has a wide range of applications.
● Adopting fiber conduction YAG fiber transmission laser and QBH galvanometer scanning head, it has a wide range of applications.
● Commonly used in cell phones, digital products, glasses, toys and other mold manufacturing and molding industry. Precision injection molding, die casting, mold repair metal jewelry and accessories, precision stamping parts welding, lost wax castings, aluminum castings, stainless steel sand hole repair.
| Equipment Model | RL-LPY300S-G |
|---|---|
| Output power | Max 300W (continuously adjustable), other options 150W, 400W |
| Laser wavelength | 1060-1070nm |
| Power Stability | ±2% |
| Focusing Cavity | Ceramic chamber |
| Cooling mode | Water-cooled |
| Peak Power | 18KW |
| Maximum pulse energy | 75J |
| Pulse Width | 0.5-20ms |
| Pulse frequency | 1-100Hz |
| Laser control mode | Real-time energy feedback |
| Welding type | Scanning mirror |
| Multi-axis control | 4-axis/6-axis |
| Welding depth | 0.1-5mm |
| Scanning range | 100mm*100mm |
| Spot Adjustable Range | 0.2-2mm |
| Energy fluctuation range | ± 2% |
| Parameter storage | 8G storage space, file direct storage, each file can call 32 groups of parameters |
| Observation system | CCD screen display |
| Equipment power consumption | 16KW |
| Power Requirements | Three-phase 380V 50Hz/60Hz |
| Cabinet Size | 1500*1000*1500mm |
| Equipment Weight | 500KG |
| Non-standard design | Support non-standard customized solutions |

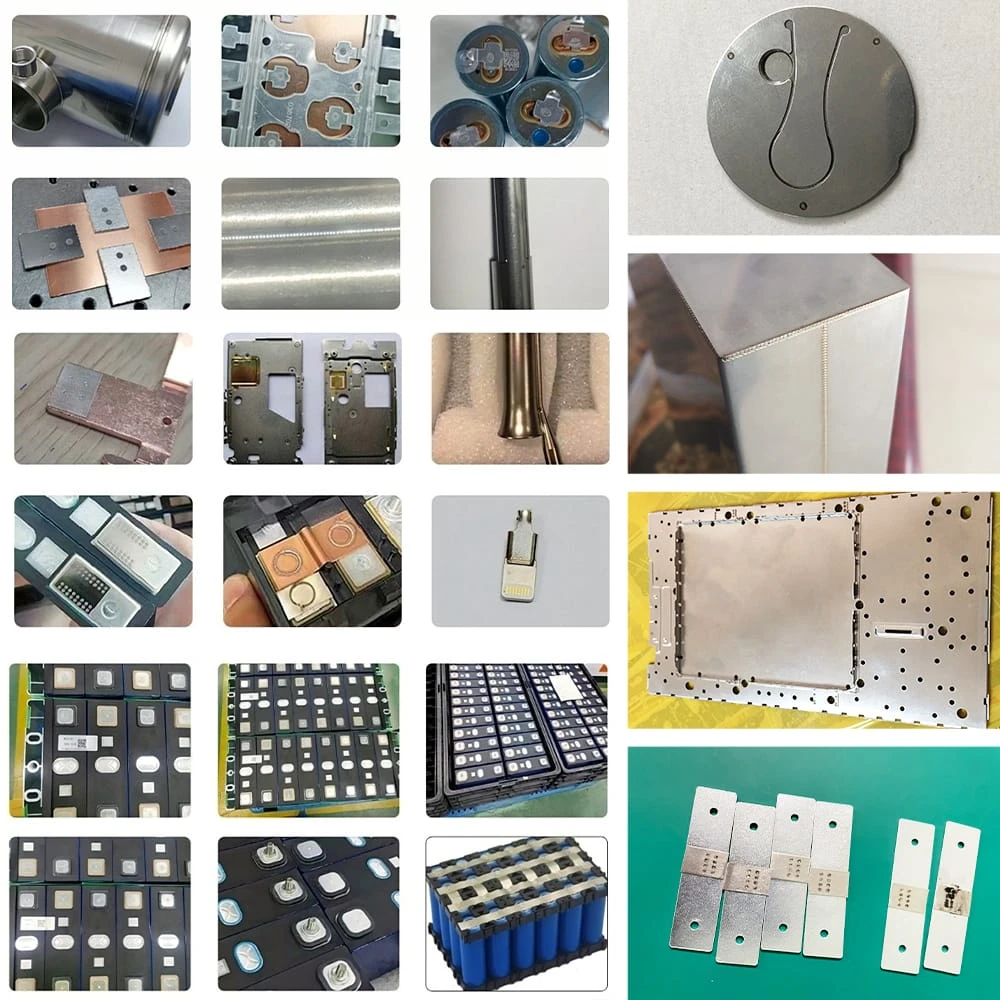

Mainly used in cell phone shielding cover, metal cell phone shell, metal capacitor shell, metal shielding network within the computer, razor blade, electronic connectors and other categories of electronic products, high-efficiency laser spot welding or sealing welding.
