Adopting single mode fiber continuous laser, QBH double pendulum welding head, it has a wide range of application. It is suitable for all kinds of mold steel, aluminum, copper, stainless steel, cymbal steel, precious metals and very hard materials, etc. l Mainly used for all kinds of metal parts, sheet metal shells, machined parts, etc.
● Adopting single mode fiber continuous laser, QBH double pendulum welding head, it has a wide range of application.

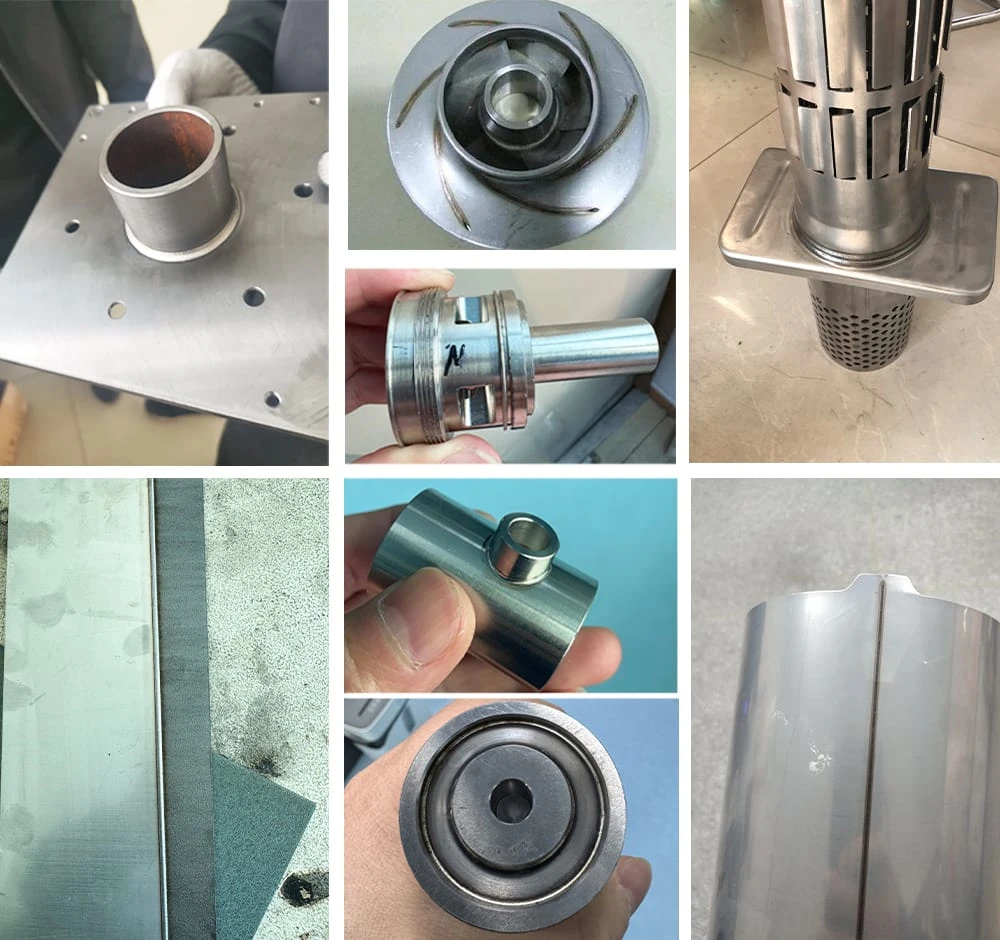

● It is suitable for all kinds of mold steel, aluminum, copper, stainless steel, cymbal steel, precious metals and very hard materials, etc. l Mainly used for all kinds of metal parts, sheet metal shells, machined parts, etc.
● Compared with traditional welding has the following advantages
1. Small thermal deformation
2. High efficiency
3. High appearance quality

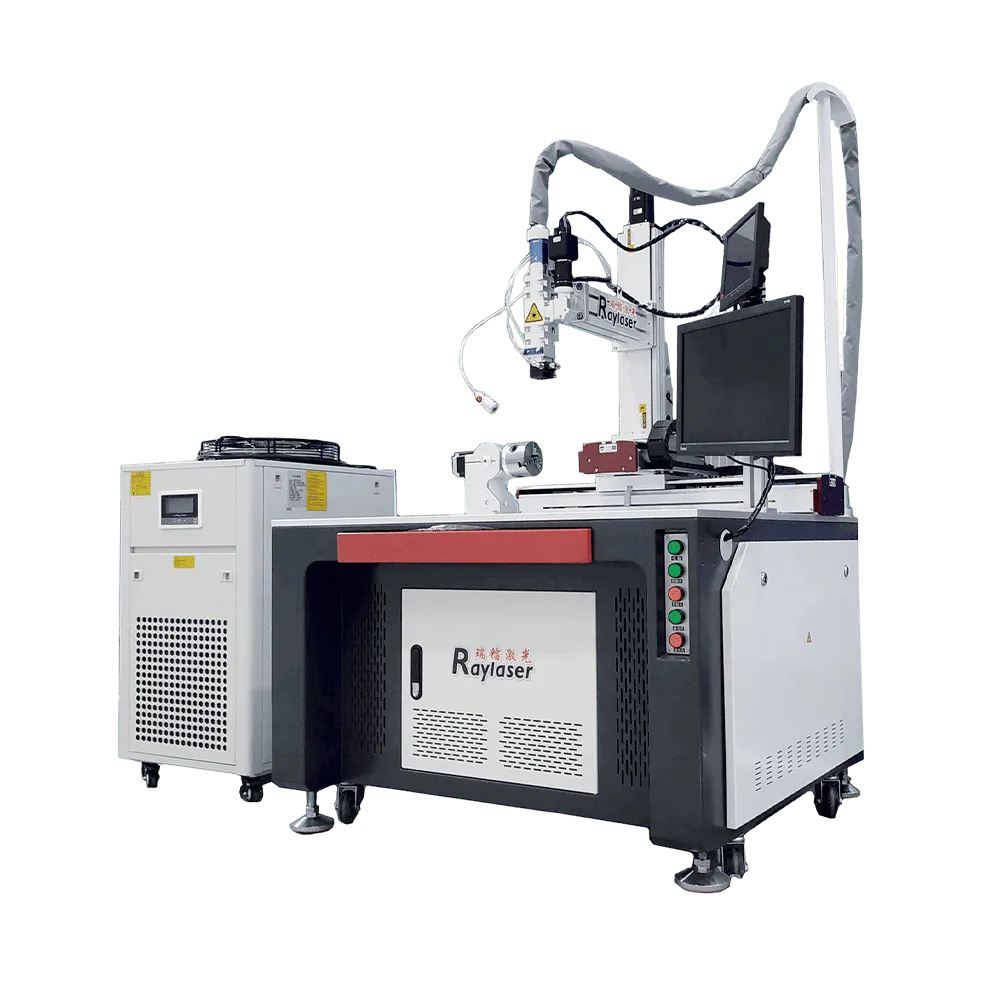

| Equipment Model | RL-LF3000A-3X-G |
|---|---|
| Output power | Max 3000W (continuously adjustable), others 1000W, 1500W, 6000W, 10000W optional |
| Laser wavelength | 1060-1070nm |
| Power Stability | ±2% (±2%) |
| Beam quality M2 | 1.5(100μ-QBH) |
| Cooling method | Water-cooled |
| Modulation frequency | 50KHz |
| Welding depth | ≤5mm(depending on material) |
| XYZ Stroke | XYZ: 600*300*400mm |
| Repeat positioning accuracy | 0.025mm |
| Motion mode | Multi-axis linkage |
| Control mode | Board |
| Environmental requirements | Temperature: 0℃～50℃ /Humidity: 5%～80 |
| Spot adjustable range | 0.1-5mm |
| Observation system | CCD welding monitor screen display |
| Welding head type | QBH Double Swing Wobble |
| Standard External Dimensions | 1050*1000*1700mm |
| Power Requirements | Three-phase 380V 50Hz/60Hz |
| Equipment Power Consumption | 12KW |
| Equipment Body Color | White/Gray |
| Equipment Weight | 300KG |
| Non-standard design | Support non-standard customized solutions |
