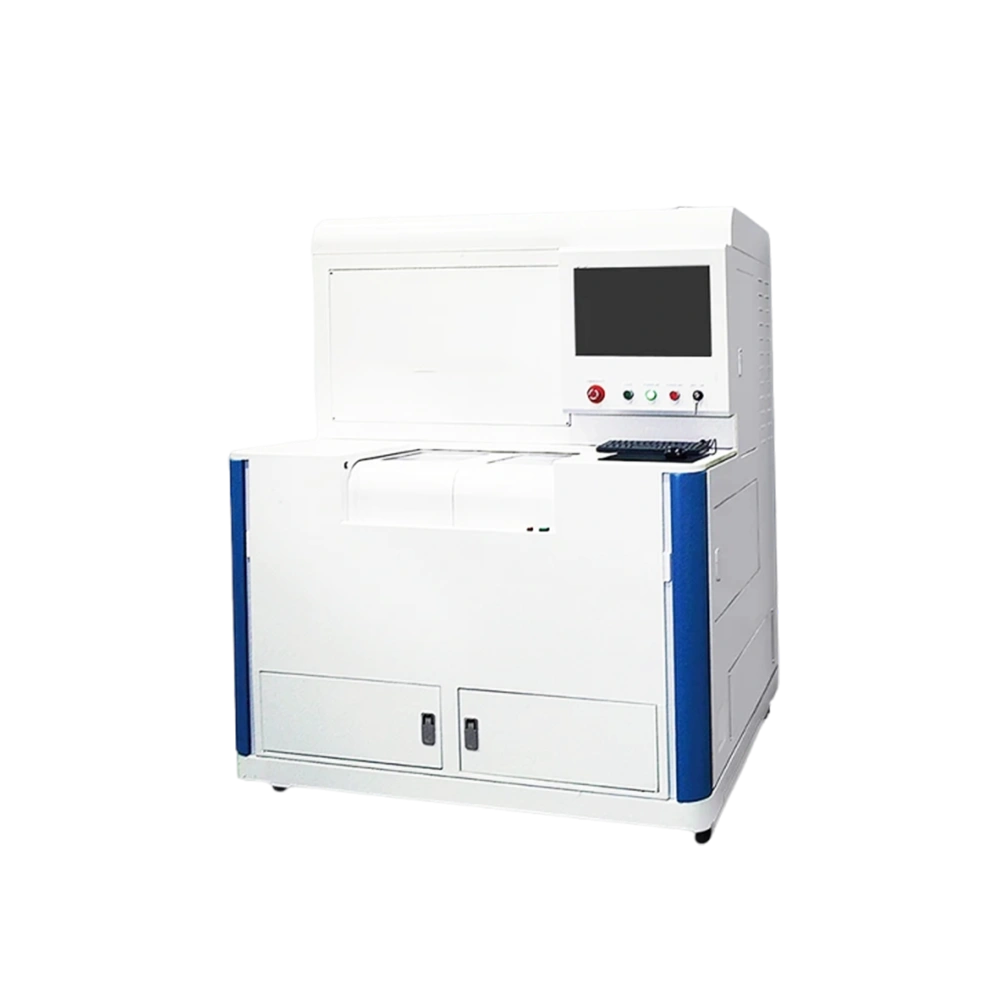

Mainly used for laser cutting of metal sheet, such as stainless steel, plain carbon steel plate, aluminum plate, etc.; Can be used to cut aluminum oxide, aluminum nitride ceramics. Cutting Product Industry: IT industry products, such as laptops, mobile
● Marble machine base, AIO sealed structure.
● Adopt linear motor to drive.
● Adopt high-precision, mute, anticorrosive guide rail to drive.
● Adopt fiber laser device, cutting head.
● HAN’S LASER Cutting Software.
| No. | Item | Parameter |
|---|---|---|
| 1 | Laser wavelength | 1070nm |
| 2 | Laser power | 150W |
| 3 | X / Y / Z axis itinerary | 300/300/80mm |
| 4 | X/Y axis repeated positioning accuracy | ±0.002mm |
| 5 | Z axis repeated positioning accuracy | ±0.03mm |
| 6 | Equipment Dimensions: L * W * H | 1450*1450*1800mm (for your reference only) |
| 7 | Machine weight | 2100kg (for your reference only) |
| 8 | Power demand (fluctuation <± 5%) | Single phase 220V，50/60HZ,50A |
| 9 | Total machine Power | 5.5KW |
| 10 | Relative humidity | 45%-75% |
| 11 | Ambient temperature | 20℃-30℃ |
