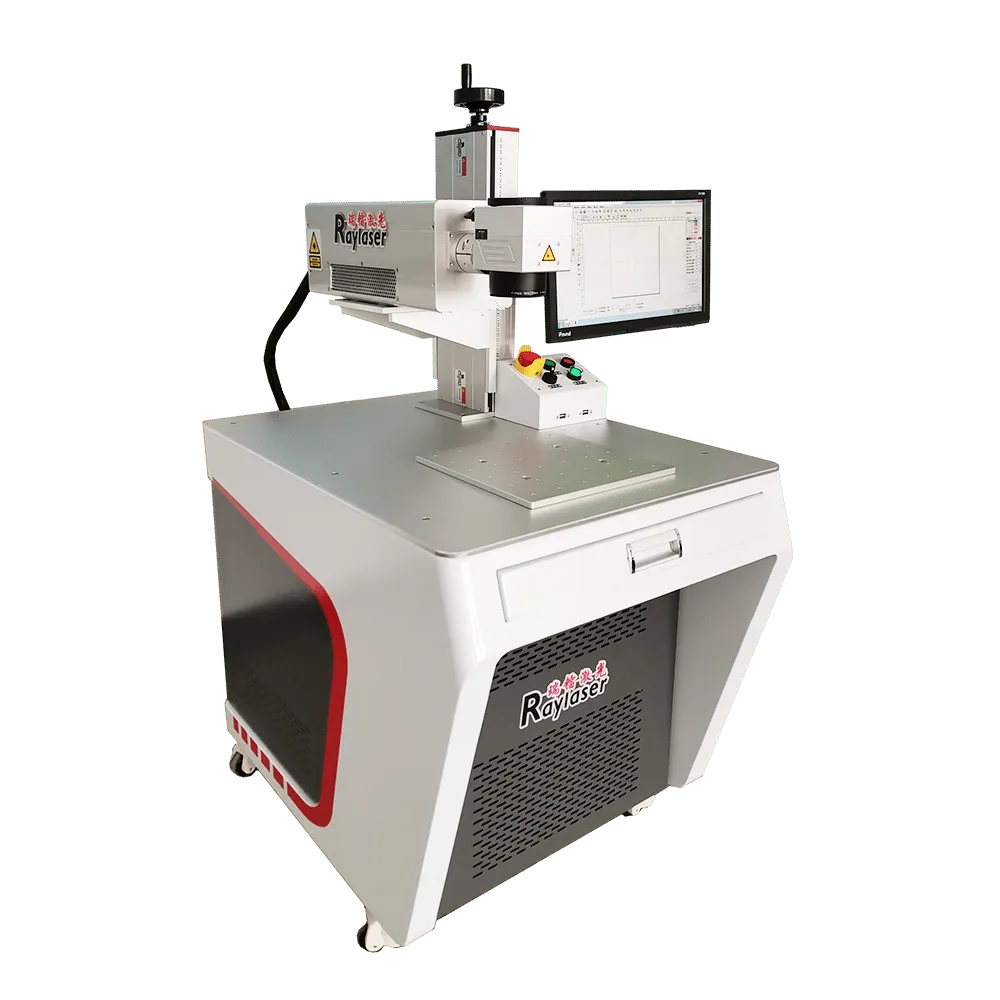

Stable performance, can realize 24 hours continuous work. Non-metallic material marking, precision marking, very strong applicability.
● Stable performance, can realize 24 hours continuous work.
● Non-metallic material marking, precision marking, very strong applicability.
● With the computer, you can change the marking graphics and parameters.
● Laser spot is small, marking line is fine, marking is fine, unique, never damage, have anti-counterfeiting.
| Equipment Model | RL-UV500-G |
|---|---|
| Power Requirement | 220V 13A |
| Output Power | Max5W (continuously adjustable) Other options: 10W, 12W, 15W, 20W, 30W |
| Laser wavelength | 355nm |
| Engraving depth | 0.01mm-0.5mm (continuously adjustable) |
| Laser engraving range | 100mm×100mm Other options: 150mm, 175mm, 200mm. |
| Minimum line width | 0.02mm@f163 |
| Minimum character | 0.1mm |
| Maximum scanning speed | 7000mm/s |
| Repeat Positioning Accuracy | 0.0025mm |
| Pulse frequency | 30～150KHz |
| Pulse width | 1-15ns |
| Cooling method | Water cooling |
| Environmental requirements | Temperature: 0℃～50℃ Humidity: 5%～80% |
| Equipment Power Consumption | 1KW |
| Power Requirement | 220V /50Hz |
| Equipment Weight | 80KG |
| Dimensions | 700*900*1500mm |
