Adopting end-face pumping mode, it uses the optimized design of resonant cavity and temperature control system. Realized high beam quality and high optical light conversion efficiency. Applied to digital products components, precision machinery, plastic keys, integrated circuit chips, electrical appliances, electronic components, automotive parts, medical equipment and other high-precision product marking.
● Adopting end-face pumping mode, it uses the optimized design of resonant cavity and temperature control system.
● Realized high beam quality and high optical light conversion efficiency.

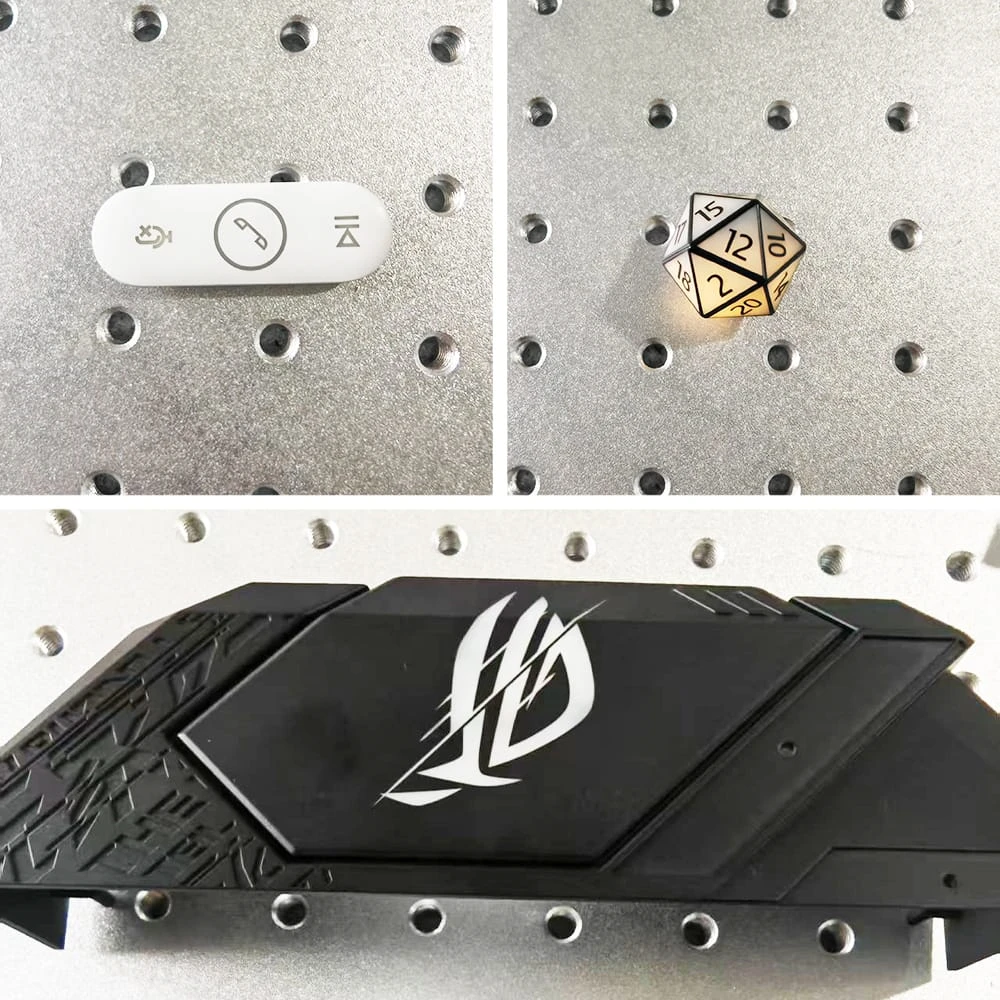

● Applied to digital products components, precision machinery, plastic keys, integrated circuit chips, electrical appliances, electronic components, automotive parts, medical equipment and other high-precision product marking.

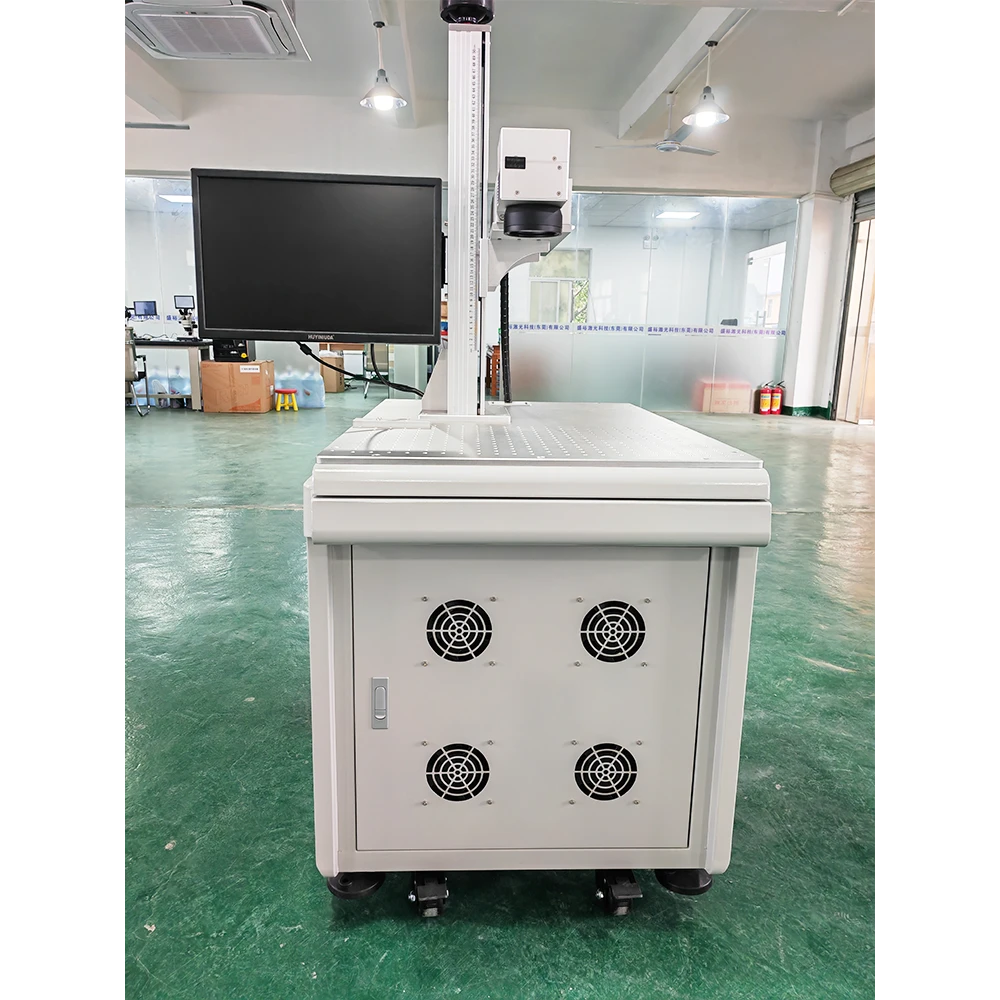

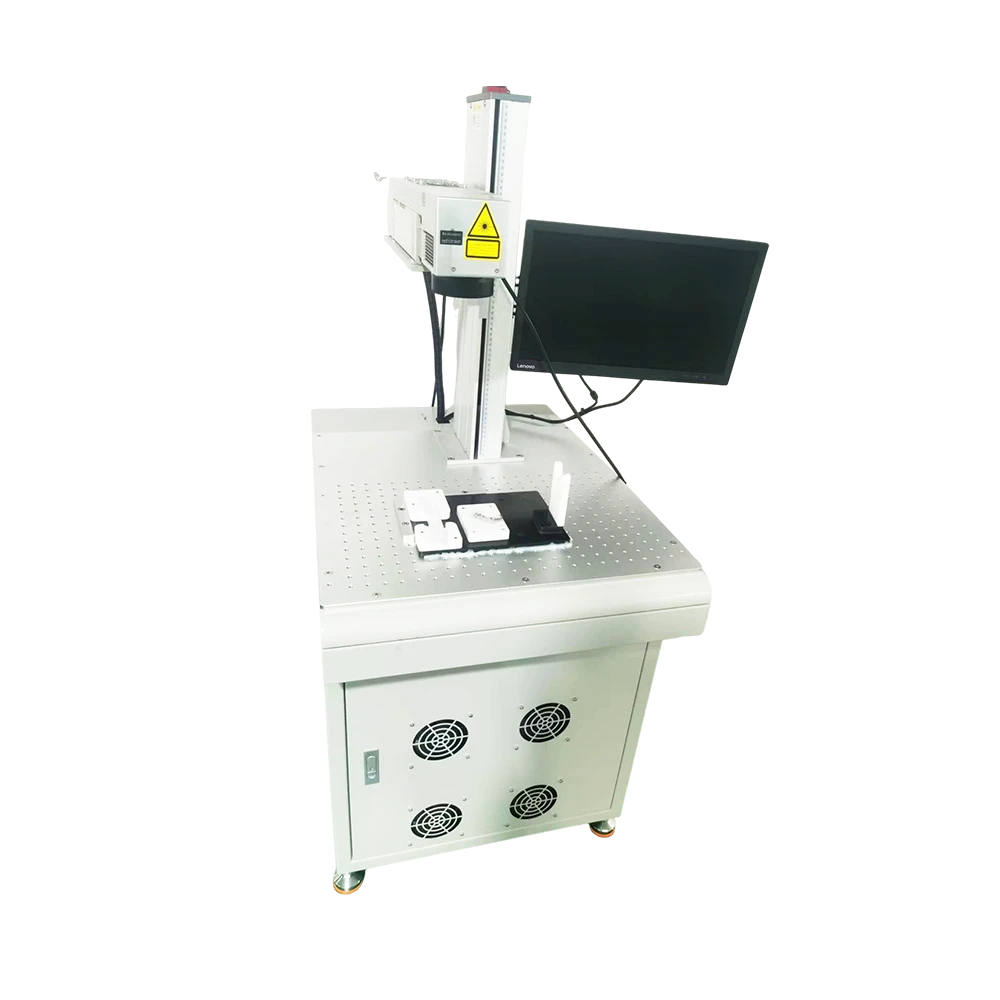

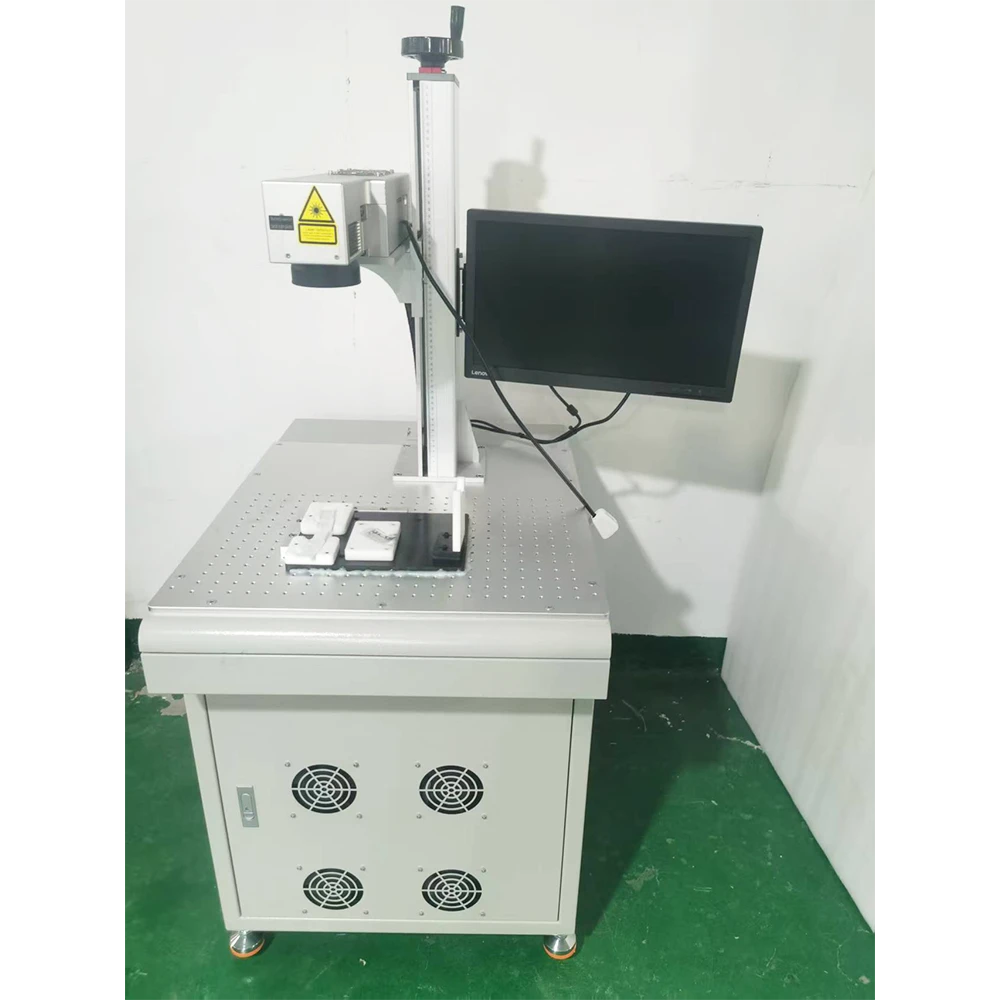

| Equipment Model | RL-EP1500M-G |
|---|---|
| Power Requirement | 220V 16A |
| Output Power | 15W |
| Laser wavelength | 1064nm |
| Marking depth | 0.01mm-0.5mm (continuously adjustable) |
| Marking range | 110mm*110mm/170mm*170mm |
| Minimum line width | 0.02mm@F=163mm |
| Minimum character | 0.1mm@F=163mm |
| Marking speed | ≤7000mm/s |
| Repeat Positioning Accuracy | 0.0025mm |
| Pulse frequency | 10~200KHz |
| Pulse width | 1--100us |
| Cooling mode | Air-cooled |
| Environmental requirements | Temperature: 0℃～50℃ Humidity: 5%～80% |
| Equipment Power Consumption | 0.7KW |
| Power Requirement | 220V /50Hz |
| Standard External Dimensions | 1550*1200*600mm |
| Equipment body color | Dark color |
| Equipment weight | 80KG |
