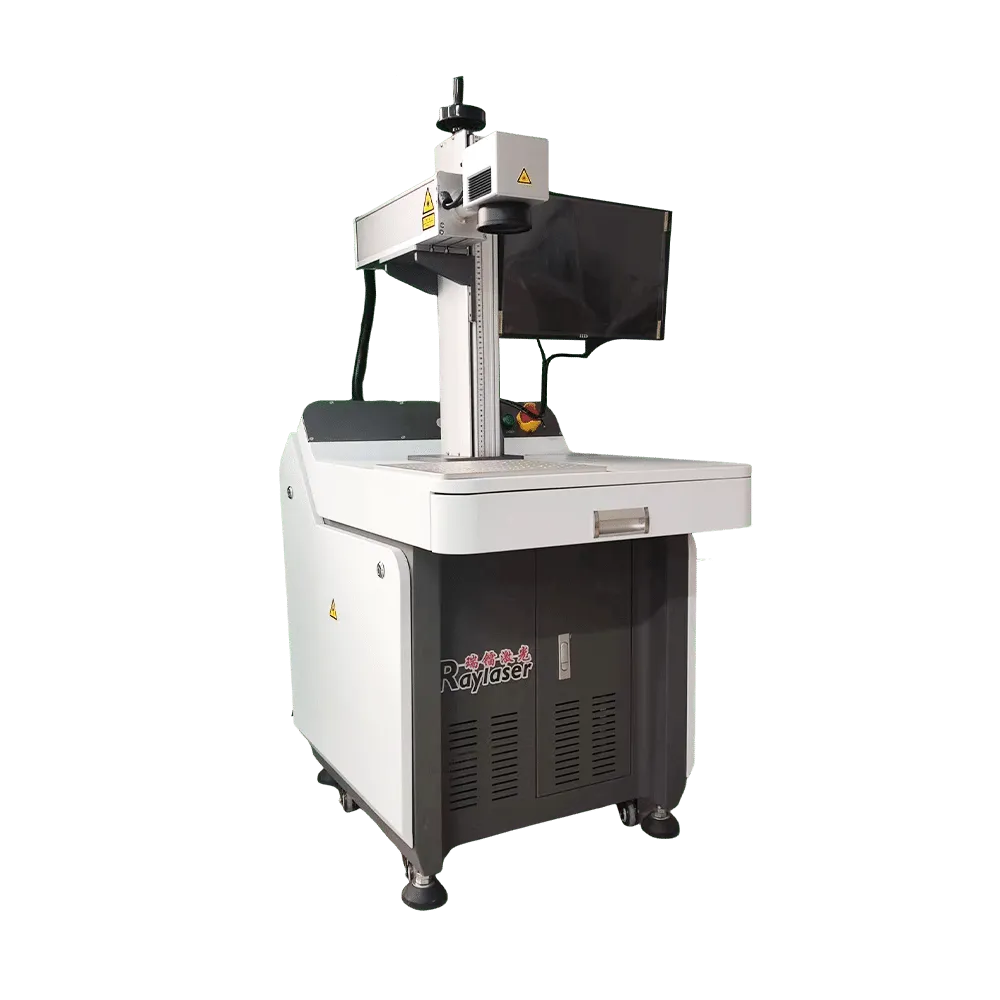

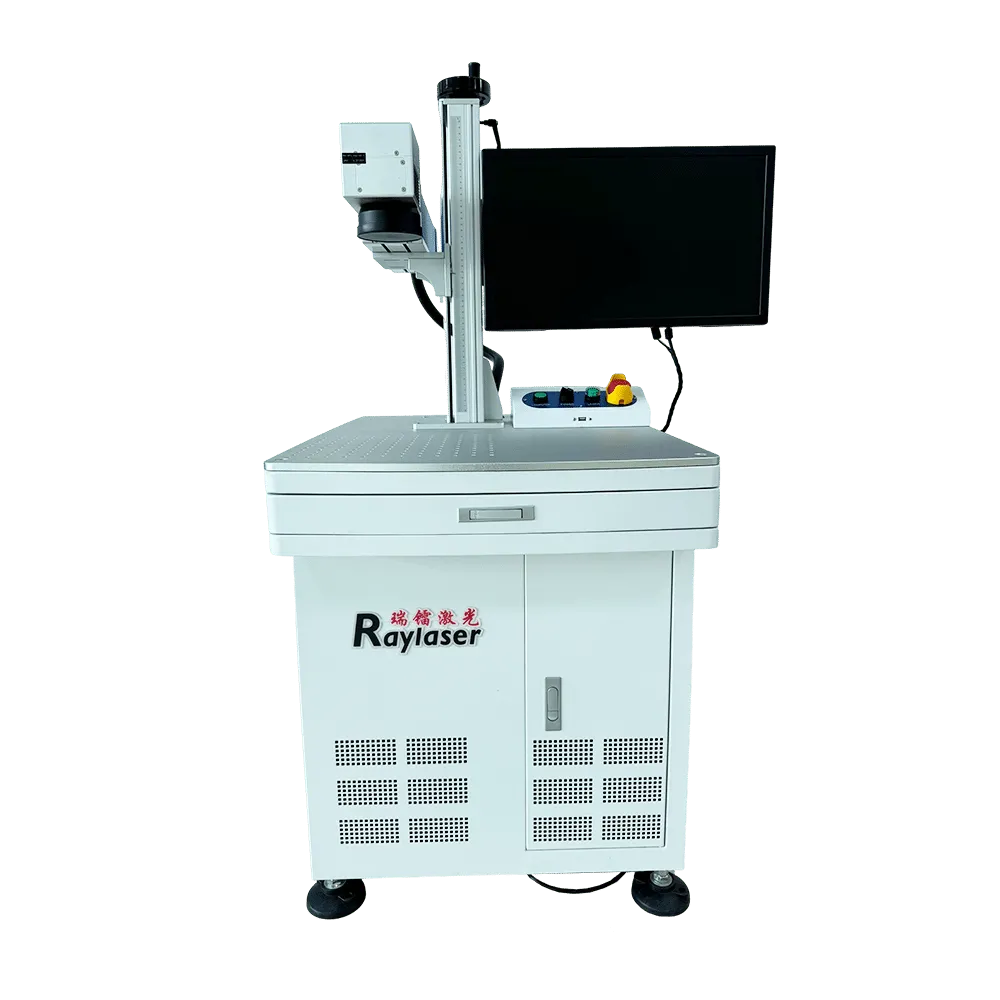

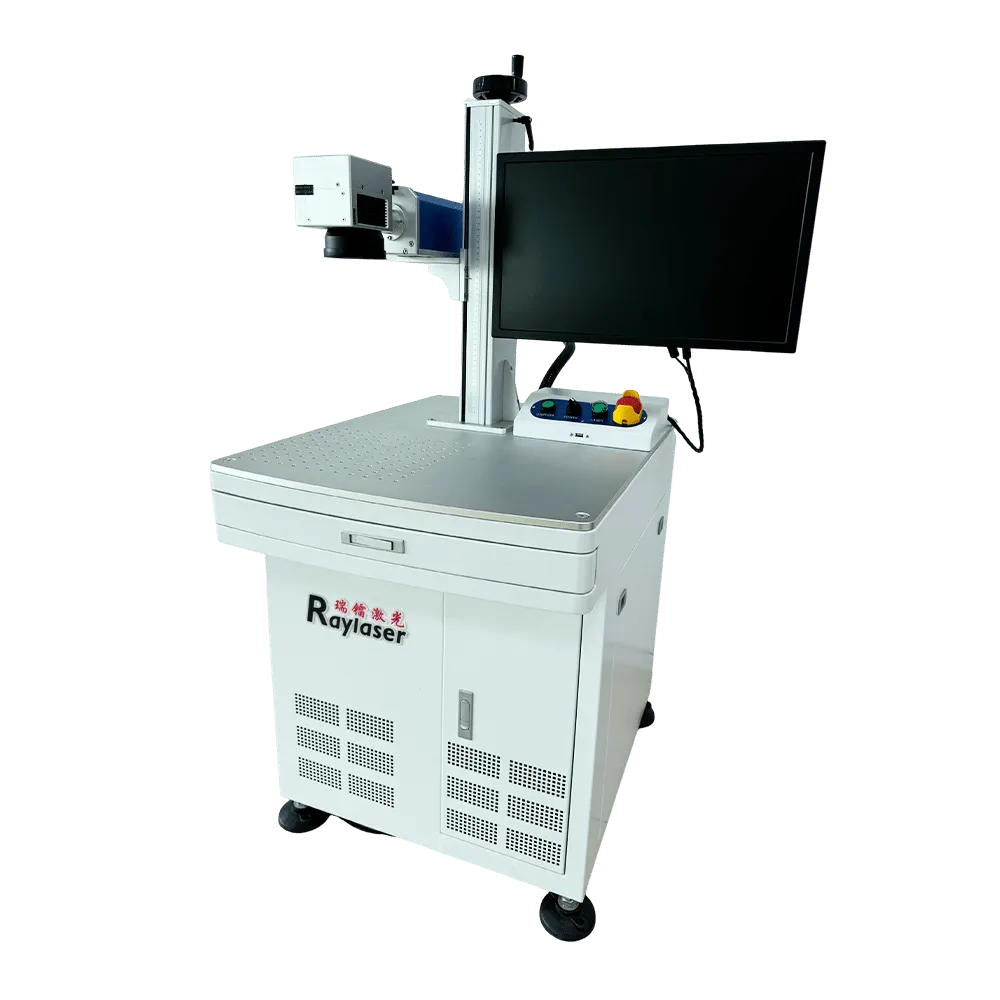

Highly integrated fiber laser, fully enclosed laser cavity design. Combined with imported scanning galvanometer system, high precision and high speed marking needs.
● Highly integrated fiber laser, fully enclosed laser cavity design.
● Combined with imported scanning galvanometer system, high precision and high speed marking needs.
● Good beam quality, close to the fundamental mode, small spot diameter, perfectly suitable for ultra-fine marking.
● High reliability, ultra-long operation life, no consumables, maintenance-free, low energy consumption.
| Equipment Model | RL-FP20-G |
|---|---|
| Power Requirement | 220V 13A |
| Output Power |
Max 20W (continuously adjustable). |
| Laser wavelength | 1060-1070nm |
| Engraving depth | 0.01mm-0.5mm (continuously adjustable) |
| Marking range | 100mm×100mm (other options 150mm, 175mm, 220mm) |
| Minimum line width | 0.02mm@f160 |
| Minimum character | 0.1mm |
| Maximum scanning speed | 7000mm/s |
| Repeat Positioning Accuracy | 0.0025mm |
| Pulse frequency | 1～4000KHz |
| Pulse width | 1-350ns |
| Cooling method | Air-cooled |
| Environmental requirements | Temperature: 0℃～50℃ /Humidity: 5%～80 |
| Equipment Power Consumption | 0.8KW |
| Power Requirement | 220V /50Hz |
| Standard External Dimensions | Customized to site |
| Equipment body color | White/Blue |
| Equipment weight | 70KG |
