Laser cutting is the process of cutting material by means of electron discharge as the energy source. The following diagram describe the principle of Laser cutting Succinctly.

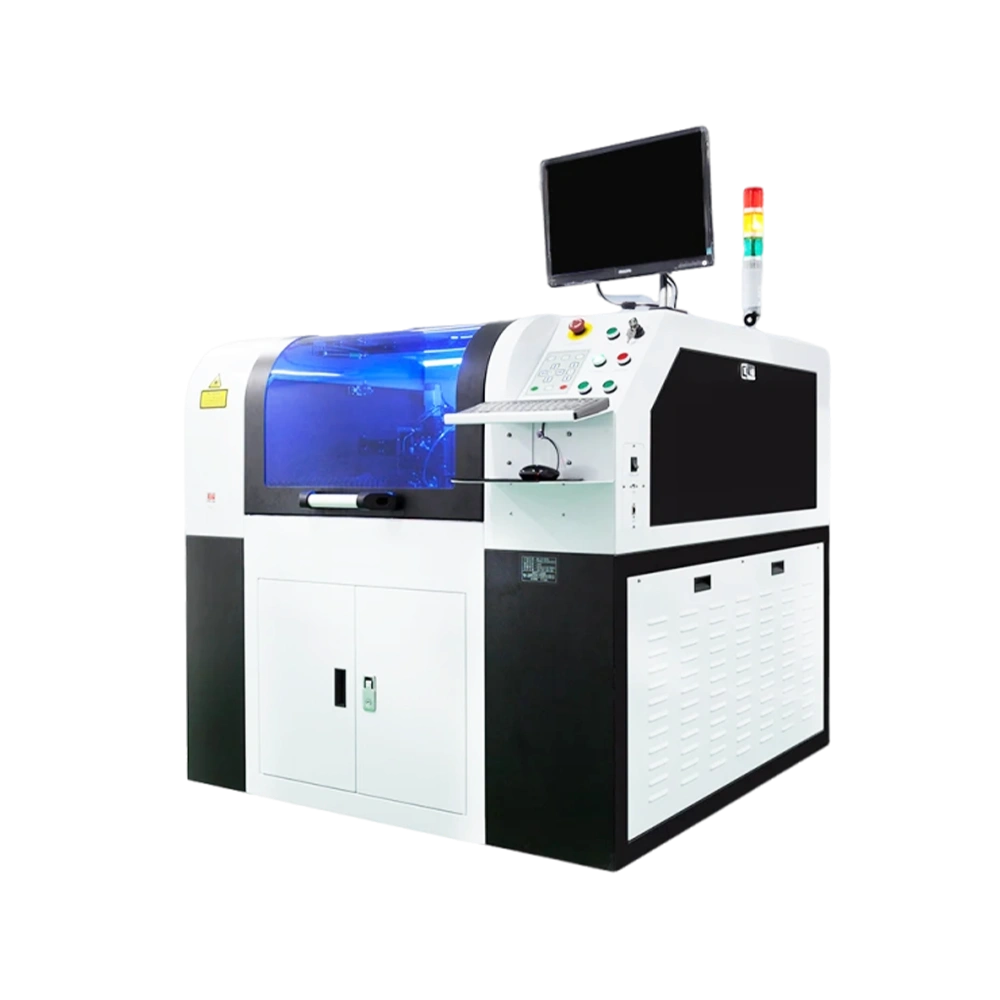

● Steel frame integral machine base, Integral enclosed structure.
● Flying optical path design.
● Moving gantry of X axis, fast & quite driving of Y axis.
● Importigh-precision, super-quiet&corrosion-proof lead-screw and guideway；
● Imported RF laser tube
| No. | Project name | Parameter |
|---|---|---|
| 1 | Laser wavelength | 9.3um |
| 2 | Laser power | 60W |
| 3 | X/Y/Z axis travel | 600/500/30mm |
| 4 | X/Y axis repeated positioning accuracy | ±0.01mm |
| 5 | X/Y axis positioning accuracy | ±0.02mm |
| 6 | Kerf width | 0.07~0.20mm |
| 7 | Machine outline size：L*W*H | 1400*1300*1300mm |
| 8 | Machine weight | 1560kg |
| 9 | electric demand（wave＜±5%） | Single-phase 220V，50Hz，35A |
| 10 | Whole power（without blower fan） | 4.5KW |
| 11 | Relative humidity | 45%-75% |
| 12 | Ambient temperature | 20℃-30℃ |
