Large, adjustable marking width. Cylindrical, curved surface laser marking or deep engraving. Powerful 3D software editor, with different types of lasers can be used for different materials.
● Large, adjustable marking width.

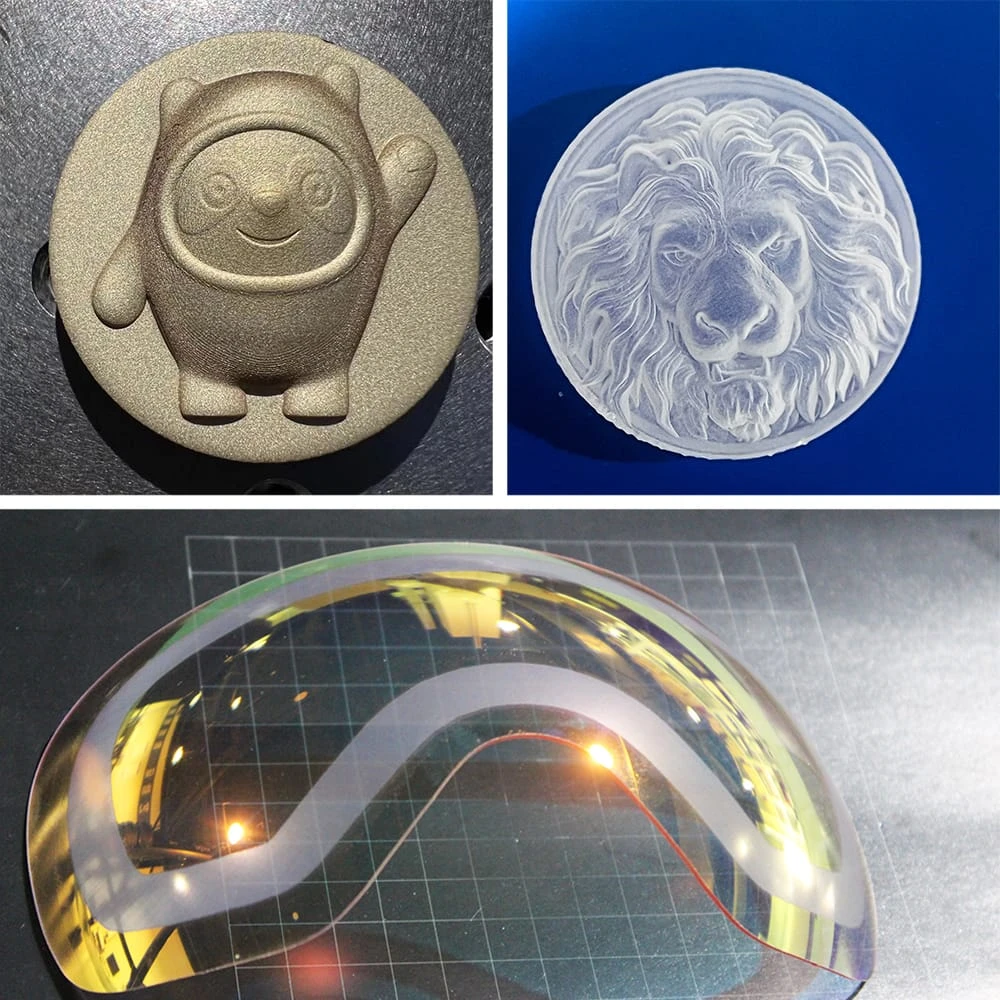

● Cylindrical, curved surface laser marking or deep engraving.
● Powerful 3D software editor, with different types of lasers can be used for different materials.
● Support 3D model import, support a variety of formats such as DXF, AI, CDR and PLT.

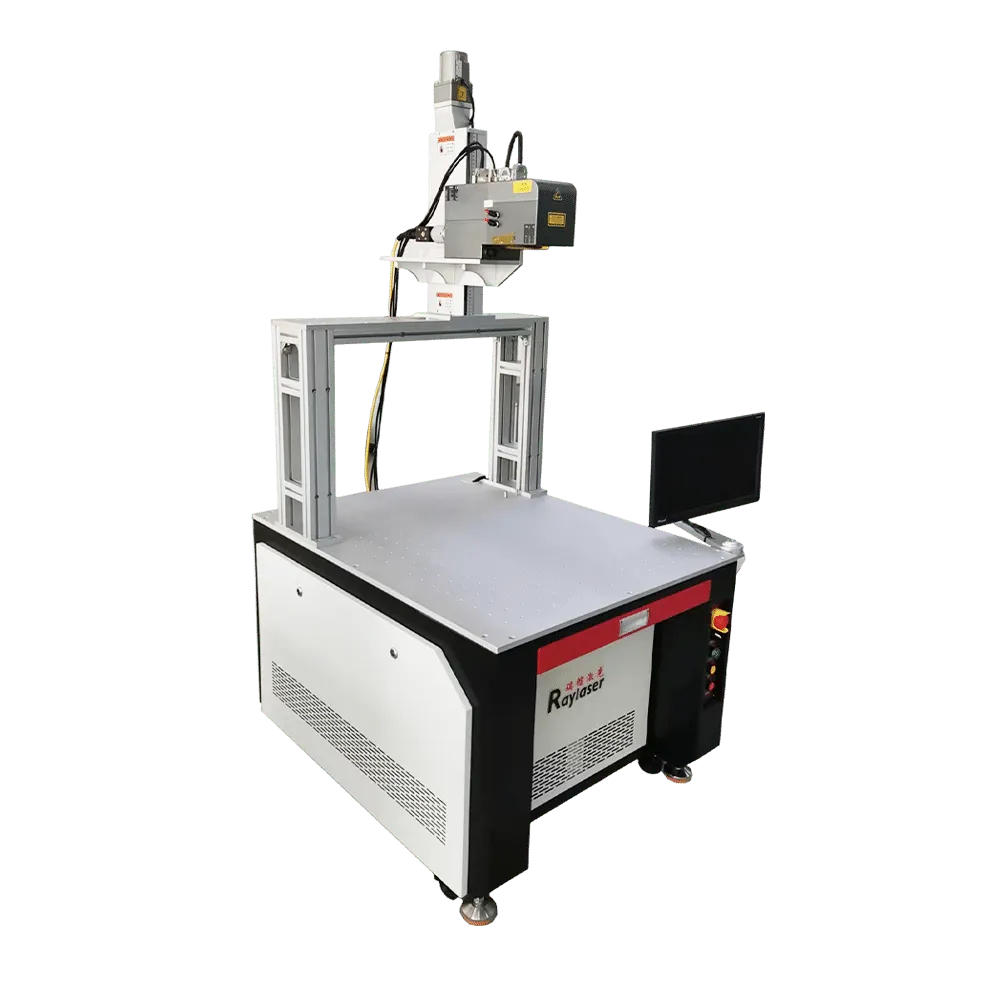

| Equipment Model | RL-3D-G100 |
|---|---|
| Power Requirement | 220V 13A |
| Output Power | 1W~100W(Continuously adjustable) |
| Laser wavelength | 1064nm |
| Engraving depth | 0.01mm-0.5mm (continuously adjustable) |
| Scanning range XYZ | Dynamic focusing 600mm*600mm*200mm |
| Minimum Spot | 0.07mm |
| Minimum character | 0.2mm |
| Maximum marking speed | 7000mm/s |
| Repeat Positioning Accuracy | 0.008mm |
| Pulse frequency | 1～4000KHz |
| Cooling method | Air-cooled |
| Environmental requirements | Temperature: 0℃～50℃ Humidity: ≤75% |
| Equipment power consumption | 1.0KW |
| Power Requirement | 220V /50Hz |
| Standard external dimensions | Customized to the site |
| Equipment Weight | 120KG |
| Other wavelengths | 532nm/355nm |
