Adopting quasi-continuous fiber laser, QBH welding head has a wide range of applications. Commonly used in cell phones, digital products, toys and other 3C manufacturing and molding industry.
● Adopting quasi-continuous fiber laser, QBH welding head has a wide range of applications.
● Commonly used in cell phones, digital products, toys and other 3C manufacturing and molding industry.

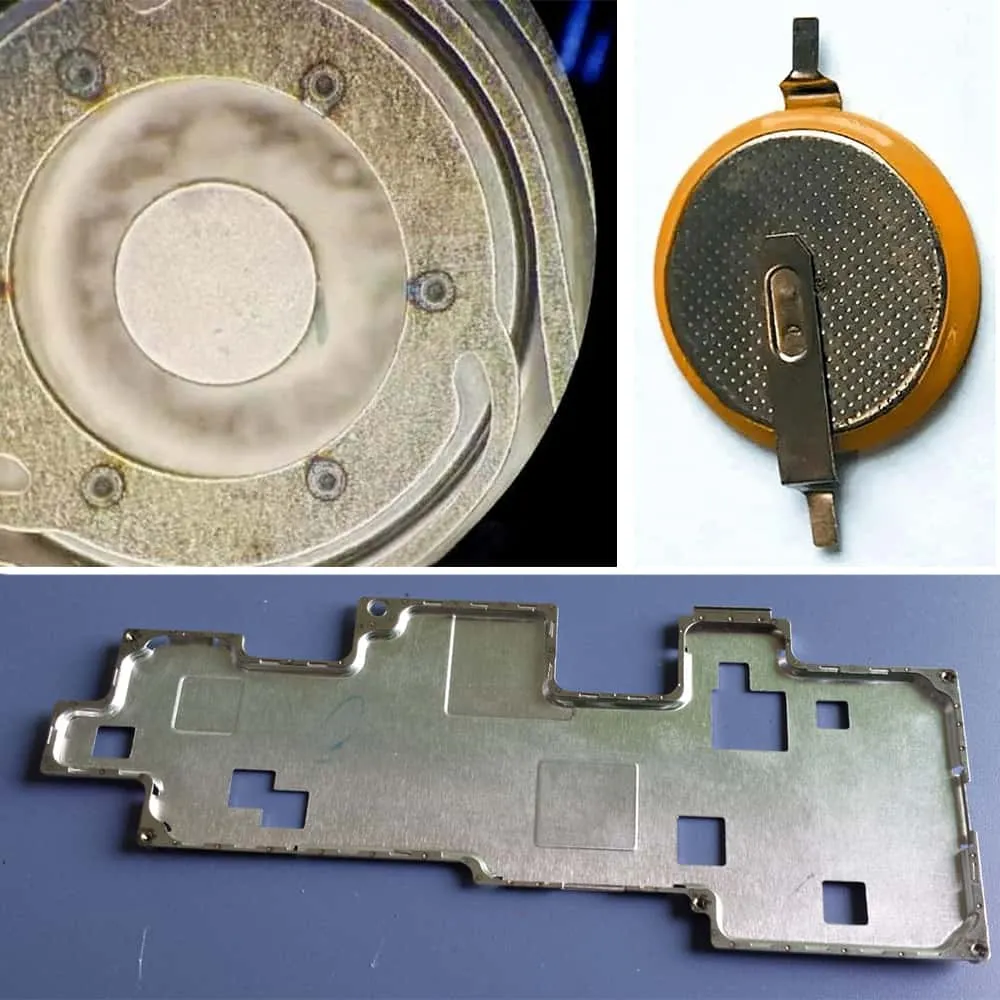

● Mainly used in cell phone shielding cover, metal cell phone shell, metal capacitor shell, metal shielding network within the computer, razor blade, electronic connectors and other categories of electronic products, high-efficiency laser spot welding or sealing welding.
● Especially suitable for precision welding of thin parts Thickness of thin parts welding: 0.01-0.5mm
● Advantages: high efficiency, small heat distortion
| Equipment Model | RL-QW300S-G |
|---|---|
| Output power | Max 300W (continuously adjustable), other optional 150W (air-cooled), 600W |
| Laser wavelength | 1060-1070nm |
| Power Stability | ±1% |
| Cooling mode | Water-cooled |
| Working Mode | QCW/PWM |
| Peak Power | 3KW |
| Maximum pulse energy | 30 J |
| Pulse width | 0.2-50ms |
| Pulse Frequency | 1-30KHz |
| Layer | 16 layers |
| Welding Type | Single Point Welding |
| Multi-axis control | 4-axis/6-axis |
| Welding depth | 0.1-3mm |
| Fiber core warp | 20um/30um/50um/100um/150um/200um |
| Spot Adjustable Range | 0.2-1.5mm |
| Fiber Length | 6m |
| Layer switching time | 0.5ms |
| Observation system | CCD welding seam observation screen display |
| Equipment Power Consumption | 6KW |
| Power Requirement | Single-phase 220V/50Hz/60Hz |
| Cabinet Size | 800*700*1500mm |
| Equipment Weight | 300KG |
| Non-standard design | Support non-standard customized solutions |
